VM34mm carbs left and right. VM168 and vm275. Come with jetting to get you dial in. Been jettting these since 2005. When pulled my 1975 motor out and decided to go racing.
Part#34100 $355.00
Carb Kit #1 come with Carbs, Aluminum intake spigots with rubber adaptors mounting hardware. Gaskets Throttle cable for stock yamaha throttle or one like it. Come with jetting to dail it in. With all kit comes with a lot of experance to help. Just call or email.
The issue i had with this was on my stock 73(see picture) the length of the spigot to the carb make it interfer with the pet cocks. So if you want to lean the over ok but this works best on after market tanks or signal petcock setup.
Part# 34101 $455.00 with After market filters (I have used them and work great)
Part# 34101A $555.00 with K&N filters
Carb Kit #2 has rubber intake spigot that are shorter and allow the petcocks not to interfer with the cable( see picture).
Kit come wtih Carbs, intake spigots, air filters and throttle cable for the stock throttle or simalar.
Part# 34102 $455.00 with after market filters( I use them all the time and work good)
Part# 34102A $555.00 with K&N air filters
Carb kit #3 This kit incorperates large intake spigots and large K&N filters so your big motor can breath.. Kit Comes with carbs Jetting to get you close, intake spigots, High Quality Gates hose and cable kit , you will need some soldering skills. There are to many after market throttles and bars to have these pre made.
Will not work with stock battery box.
Part#34103 $555.00
Shows 38mm Carb kit on bike
36mm and 38mm single carb kits.
36mm and 38mm complete carb ktis. Kit includes you choice of 36or 38mm carb. intake spigot with high quality gates hose and clamps. Turbo throttle and cable adn K&N air filter extra jets to get you close.
Part# 36101kit $295.00 for 36mm carb.
Part# 38101kit $295.00 for 38mm carb.
Part# 36102 $195.00 carb only (jetted close)
Part# 38102 $195.00 carb only ( jetted close)
K&N Air Filters
For 34mm vm CARBS.
PART# RU-0600 PERFECT FOR YOUR XS650 WITH STOCK BATTERY BOX. $54.00 EACH
PART# K&N RB-0610 PERFERCT FOR YOIUR BIG BORE XS650 OR BOBBER WITH NO BATTERY BOX $54.00 EACH
fOR 36mm AND 38mm vm'S
PART# RU-0810 PERFECT FOR YOUR TT,SR,XT500 $54.0 EACH

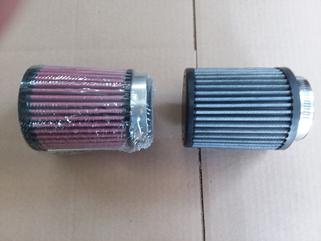

After Market Pleated air filters, been using these for over 6 years. Good quality. Treat like K&N's . These are for 32m and 34mm carbs.
Filters are 4" long, over all 4 3/8" 3.25 diameter.
Part# AM100 $25.00 each

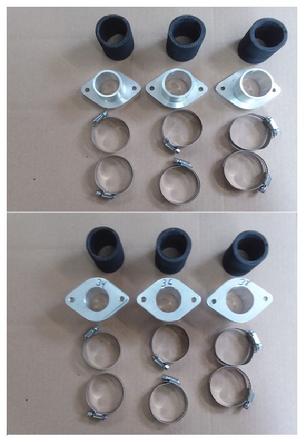

2 1/2" intake comes with carb kit 34103
1 7/8" intake comes with carb kit 34101
1 1/2" intake comes with carb kit 34102

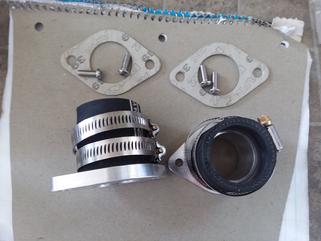

Intake spigots, these are made to fit your VM34-VM38mm Mikuni Carbs. The OD and ID are machined to match the VM carbs for a smooth transition. To top that off we only use quality Gates hose. The hose is the strongest we have found for holding up to race fuel and strong so no flex. And finally 2 stainless steel hose clamps.
Part# 34991 34mm intake $55.00 each
Part# 36991 36mm intakes $55.00 each
Part# 38991 38mm intakes $55.00 each
Spigots are 1.5" overal and 1.25" barrel

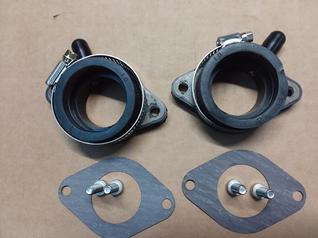

New rubber intakes for you late model BS34 or Vm34 Mikunis. Comes with plugs for tubes.
Part# 34xx $52.00

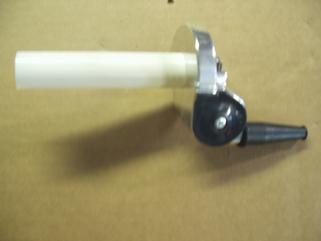

Turbo Throttle

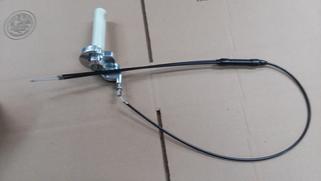

Turbo Throttle with single pull cable
Turbo thorttle, what can i say great unit. Fits 7/8" bars.
Part# 44-97760 $35.00
Part#44-97761 $55.00 with single pull cable
New NIBBI throttlem works with my carb kit cables.
NIBBI thorttle ..$22.00
NIBBI throttle and NCS-960 2-1 cable $68.00
Magura Style throttle with 2-1 cable for 34mm Mikunis.
Part# MA201 - $85.00

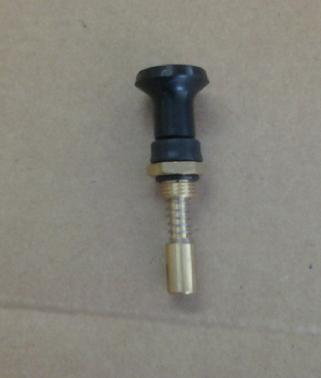

Pull chock, many like to use this on the right side carb on there twin carb 650"s.
Part# xx2010 $10.00
2-1 throttle cable kit, this 2-into 1 cable kit with PVC splitter . Some soldering is required
Part# 44-1026 $45.00
This 2-1 cable will work great for your stock thorttle to VM34 Carbs.
Part# NCS960 $45.00
NCS960
Part #
ITEM
Specs.
PRICE
44-1025
2-1 throttle cable
2-into 1 cable kit with Metal splitter Some soldering is regquired
